Whether you’re dealing with sensitive data transmission in an office environment or working with industrial automation equipment, selecting the proper cable can make all the difference in terms of performance, reliability, and cost-effectiveness. Multicore Shielded Twisted-Pair (STP) cable is a popular choice in many industries due to its exceptional ability to protect against electromagnetic interference (EMI) while maintaining high-quality data transmission. In this article, we’ll explore when it is ideal to use multicore shielded twisted-pair cable and why it is the best solution for specific applications.

What Is Multicore Shielded Twisted-Pair Cable?

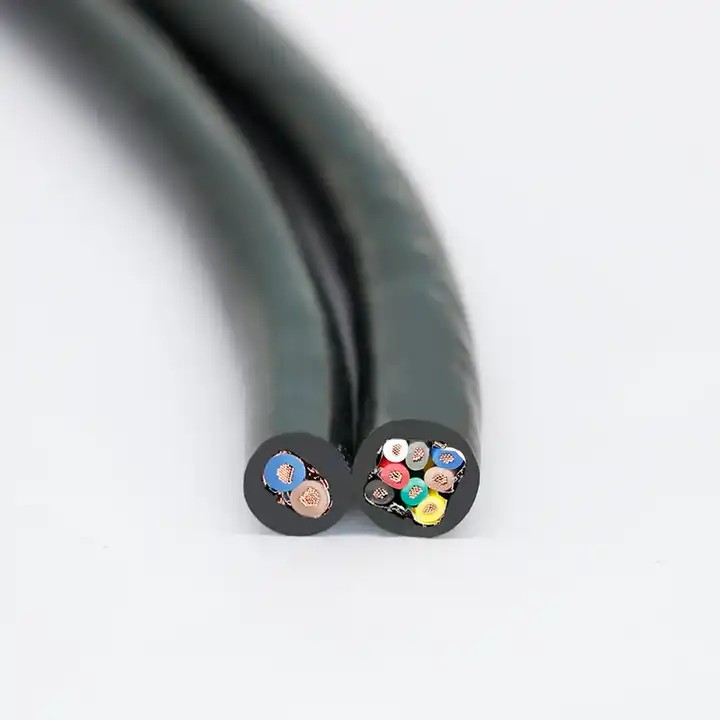

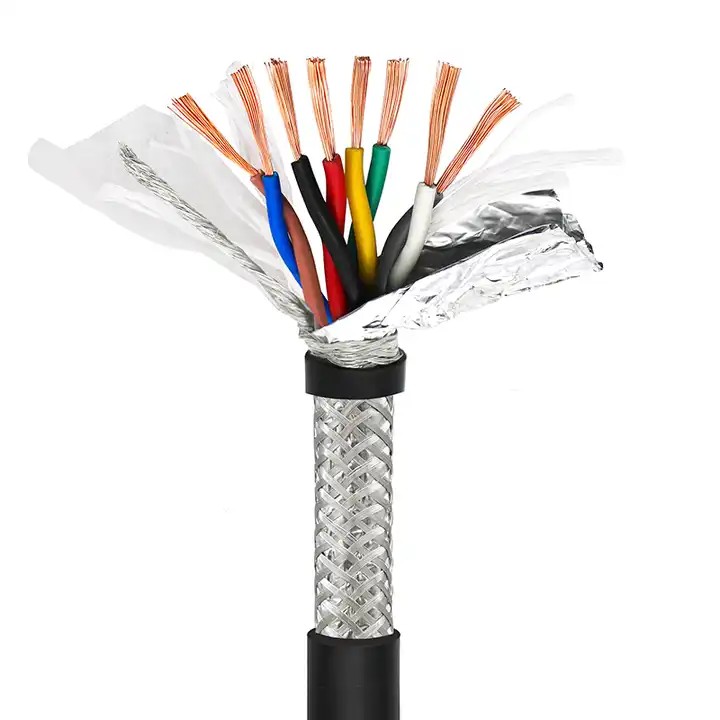

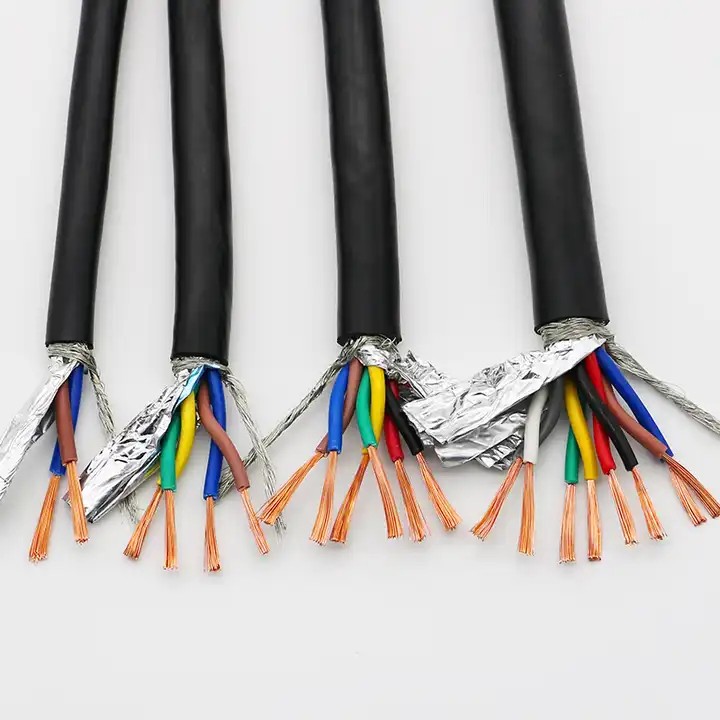

Multicore shielded twisted-pair cable consists of several pairs of wires twisted together and shielded by an outer metallic layer. The core pairs are typically used to carry balanced signals and are twisted to reduce the potential for electromagnetic interference (EMI). The shielding provides an extra layer of protection, preventing external noise from affecting the signals inside the cable. This type of cable is commonly used in networking, telecommunications, and industrial applications where data integrity is crucial.

When to Use Multicore Shielded Twisted-Pair Cable?

1. When You Need Protection from Electromagnetic Interference (EMI)

One of the primary reasons to use multicore shielded twisted-pair cable is to protect data signals from external interference. In environments with heavy machinery, high-voltage electrical systems, or high-frequency equipment, EMI can severely affect signal quality. Shielding prevents the electromagnetic noise generated by these systems from interfering with the signal within the cable. This is particularly important for industries like manufacturing, telecommunications, and healthcare, where data integrity is essential for proper system operation.

For example, in industrial environments with automated machinery, STP cable ensures that control signals remain unaffected by electromagnetic fields that could otherwise cause malfunction or signal degradation. Without proper shielding, signals might be garbled or lost, leading to potential system failures and costly downtime.

2. When You Need Reliable Data Transmission Over Long Distances

Multicore shielded twisted-pair cables are excellent for long-distance data transmission. Over long distances, signal degradation becomes a major issue, especially when using cables that do not have sufficient protection. The shielding in STP cables helps maintain signal integrity by reducing the effects of external noise. Additionally, the twisted pairs help cancel out interference between adjacent cables, allowing for clean data transfer over longer runs.

For applications like networking or telecommunications, where data must travel across large buildings or between remote locations, multicore shielded twisted-pair cables provide the necessary protection and reliability.

3. When High-Speed Data Transmission Is a Priority

As data speeds continue to increase, so does the demand for cables that can support high-speed communication without compromising performance. Multicore shielded twisted-pair cables are designed to handle high-frequency signals, making them ideal for systems that require fast data transfer, such as Ethernet networks (especially Gigabit Ethernet or higher speeds) or HD video transmission. The shielding ensures that high-speed signals are not disrupted by external sources, allowing for uninterrupted and high-quality communication.

In office environments or data centers, where large volumes of data are transmitted across the network every day, using STP cables ensures that signal quality is preserved, even under heavy data loads.

4. When Your Environment is Prone to Interference

Certain environments are particularly prone to interference that can impact the quality of data transmission. High-density urban areas, factories, power plants, and other places with heavy electrical equipment are common examples where multicore shielded twisted-pair cables should be used. These environments often generate electromagnetic fields that can distort or disrupt signals if cables are not adequately protected.

By using STP cables, businesses can prevent issues such as data loss, signal degradation, or unreliable connections caused by EMI. Whether it's industrial automation systems or security systems, the shielding in multicore shielded twisted-pair cables ensures that data is transmitted reliably, even in challenging environments.

5. When You Need a Cost-Effective Solution

While fiber optic cables offer excellent signal transmission capabilities, they can be expensive and may not always be necessary for every application. Multicore shielded twisted-pair cables provide an affordable alternative, offering excellent protection against interference without the high cost associated with fiber optics. For many applications, such as local area networks (LANs) or smart building systems, STP cables offer a balanced solution between performance and cost.

In comparison to unshielded twisted-pair cables (UTP), STP cables provide an added layer of security against external noise while remaining more budget-friendly than fiber optic alternatives.

Key Benefits of Multicore Shielded Twisted-Pair Cable

1. Improved Signal Integrity: The shielding reduces the risk of signal degradation, ensuring that data transmission is clean and accurate, even in noisy environments.

2. Protection from Interference: EMI and crosstalk between cables are minimized, which is crucial in environments with large amounts of electrical equipment or long cable runs.

3. Increased Durability: The outer shielding protects the internal wires from physical damage, such as abrasions, cuts, or moisture, prolonging the lifespan of the cable.

4. Better Performance in High-Speed Networks: STP cables are designed to support high-frequency applications, making them ideal for high-speed networking, telecommunications, and data transmission systems.

Applications of Multicore Shielded Twisted-Pair Cable

• Telecommunications: Used in phone lines, Ethernet, and other communication networks where signal integrity is critical.

• Industrial Automation: Ideal for control systems, sensor data transmission, and automated manufacturing processes.

• Healthcare: Ensures reliable and noise-free transmission of data in medical devices and systems.

• Data Centers and IT Infrastructure: Supports high-speed, high-volume data transmission in server rooms and networking equipment.

Multicore shielded twisted-pair cable is an essential solution for any application where data transmission quality and reliability are crucial. Whether you’re working in industrial automation, telecommunications, or data networking, STP cables provide the protection you need to maintain high-quality data transfer, even in environments prone to interference. The shielding minimizes external electromagnetic interference, reduces crosstalk, and ensures the integrity of your signals. By understanding when and why to use multicore shielded twisted-pair cable, you can optimize your systems for better performance, reduced downtime, and greater efficiency.
